Vehicle & Body Specification
• Engine: 6.6L V8 Gasoline
• Transmission: Allison 10-Speed Automatic
• Rear Axle: 3.73 Ratio
• GVWR: 14,000 lbs. (6,350 kg)
• Emissions: 50-State
• Remote Start Package
– Remote start
– Theft-deterrent system
– Rear-window defogger
• Convenience Package
– Dual-zone climate control
– 10-way power driver seat
– Manual tilt and telescoping steering column
– LED fog lamps
• Snow Plow Prep / Camper Package
– Alternator, 220 amps
– Increased front GAWR
– Skid plates
– Roof emergency light provisions w/ pass through
• Heat Package
– Heated driver and front passenger seats
– Heated steering wheel
• Trailering mirrors – heated, power-adjustable,auto-dimming w/ turn indicators
• 17" painted steel wheels
• Chrome recovery hooks
• Speedometer calibration, provisions
• Rear camera kit
• Back up alarm
• FLT – Competitive Assistance Program
• FLT – OnStar Security, 12 months
• Fleet ordering assistance
• Painted single stage white
• No logos
• No Knapheide branding on body
• No logo mud flaps

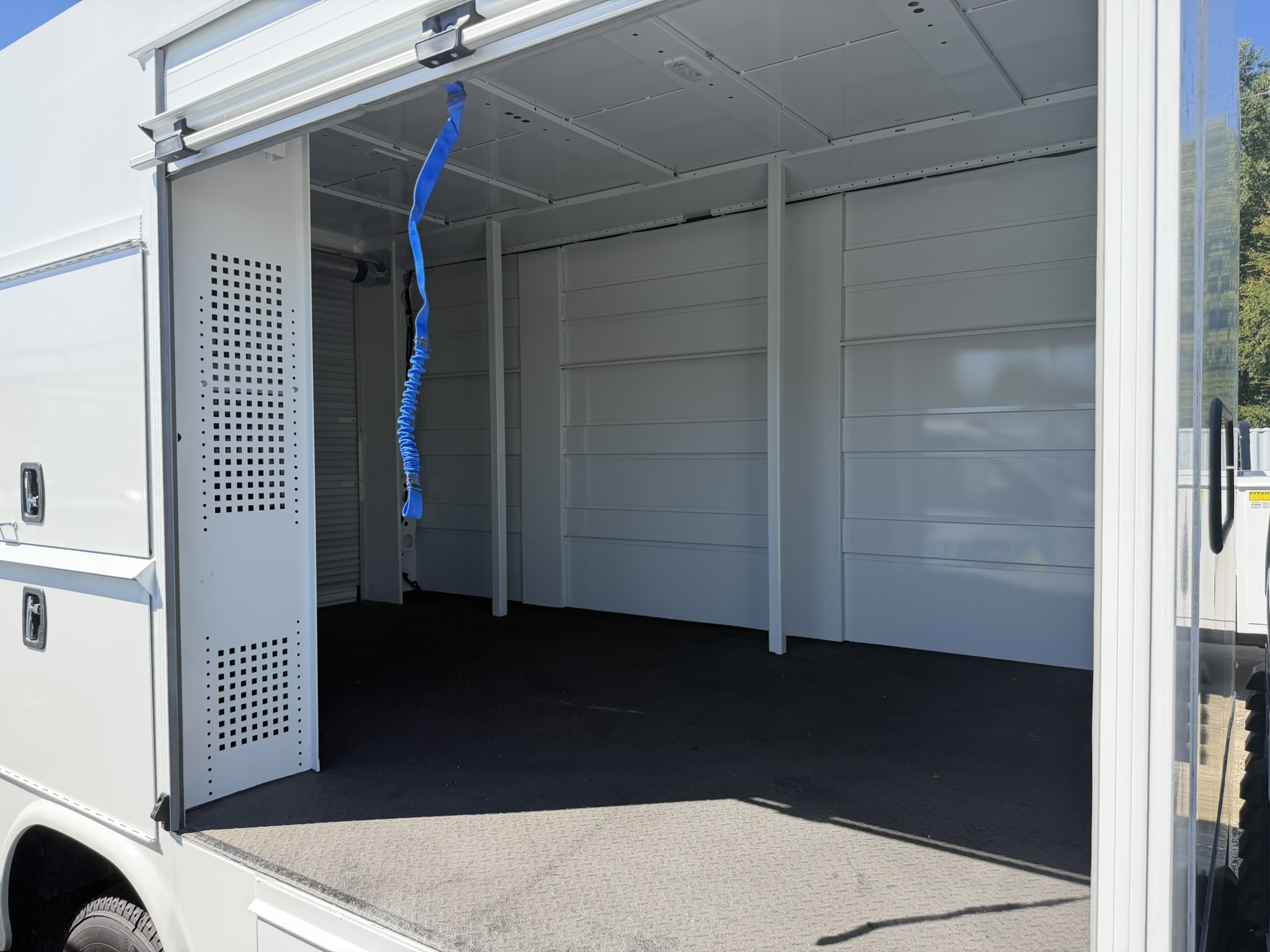

• Streetside and curbside compartments 14.5" deep
• No compartments or shelving above floor
• Floor extended over compartments
• Compartments below floor remain
• 1st/2nd vertical combined & open to cargo area,with cargo floor extended to door; compartment under floor remains
• Front vertical with roll up door
– Clear door opening from cargo floor to lowest point onopened roll up door: 53" high × 66.25" wide
• (2) horizontal compartments with backs punched tocargo area
– Lower HZ compartment w/ (5) weld-in dividers and dropdown door
– Upper HZ compartment w/ (5) weld-in dividers, lift-updoor w/ strap for closing, and HZ bolt-in shelf
• Rear compartment back punched to cargo area
• Rear compartment same height as curbside front
• Inner wall panels punched
• Gas props on all doors
• 3-point latches on all doors

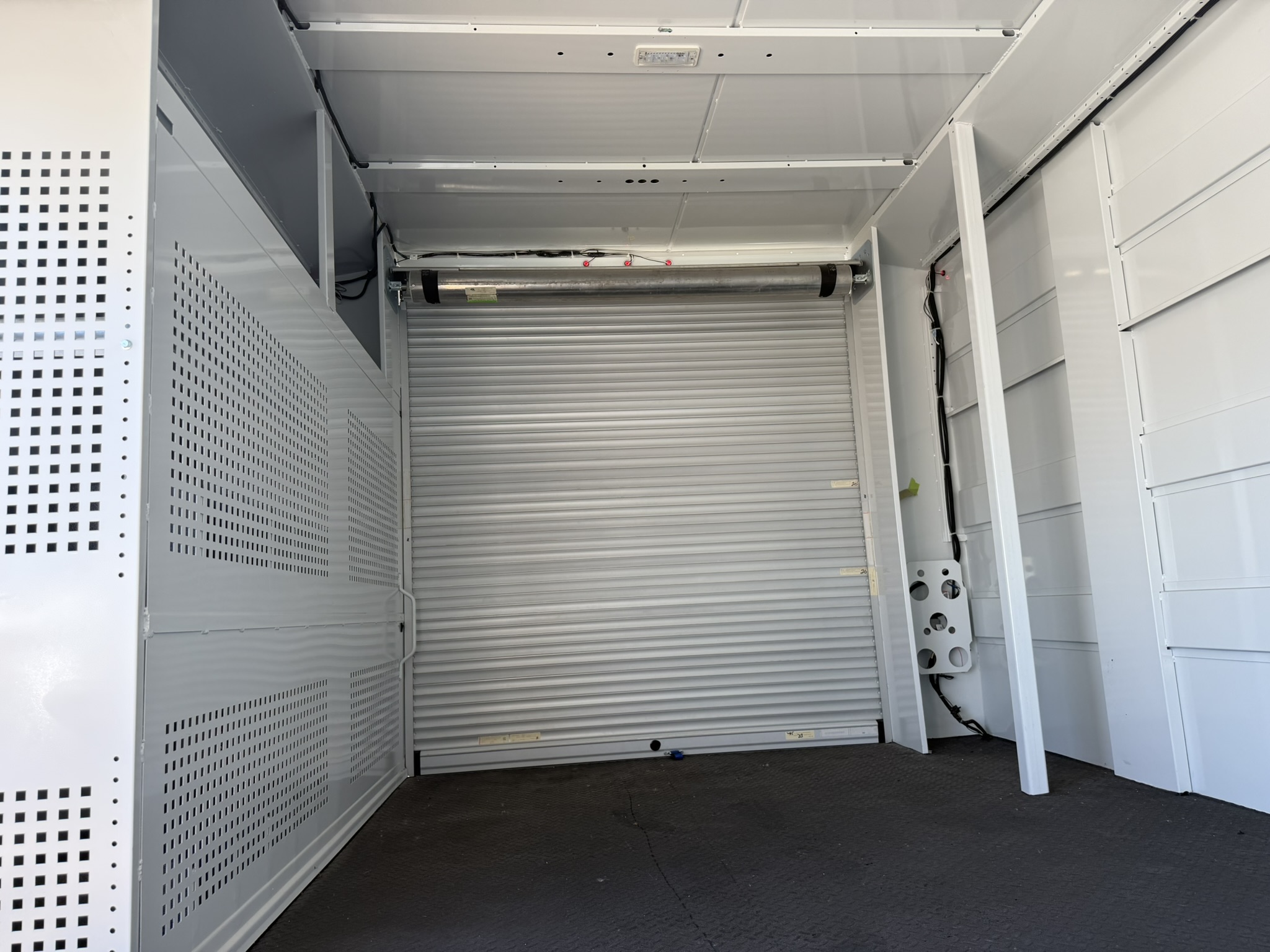

• Roll up rear door
• No rear access doors
• Canopy roof with straight sides
• Steel bulkhead with window
• 65" floor width without wheelhousings
• Rear underbody ramp storage compartment below rearcargo door; ramp storage built in
• Sill style understructure
• Kit for GM 84" CA
• Aftermarket backup camera
– To work with OEM monitor
• Roll-A-Matic door – curbside front
– Wet spray white
– Includes key
– Installed on curbside front
• Roll-A-Matic door – rear
– Wet spray white
– Includes key
– Installed at rear
• LED compartment lights
– Wired to the same switch as the dome lights in cargoarea
– No switch in cab
• Class V hitch
• 7-way trailer plug – flat
• Todco walk ramp
– Stowed in ramp tunnel
• PDI
• Sprayline bottom of compartments and 1/4 up sides
• Sprayline all fixed compartment shelves
• Sprayline cargo floor only
