2024 Chevy 4500 LCF G1 Gorilla Truck Body

This 2024 Chevrolet 4500 LCF (Low Cab Forward) features a highly specialized G1 Gorilla Truck Body. Built on a maneuverable 150" wheelbase with a 14,500 lb GVWR, this unit combines the visibility and tight turning radius of a cab-over chassis with an advanced, asymmetric service body designed for maximum tool organization and secure cargo transport.

‍

Efficiency Highlights

• Gorilla Service Body: Features a unique asymmetric compartment layout (24" deep street side / 14.5" deep curbside) to maximize interior cargo floor space while providing deep exterior tool storage.
• Low Cab Forward (LCF) Advantage: The 150" wheelbase and cab-over design provide industry-leading forward visibility and a tight turning radius, perfect for navigating residential streets and job sites.
• Specialized Access: Includes a curbside front vertical compartment with a Roll-Up Door that opens directly to the cargo area for seamless equipment retrieval.

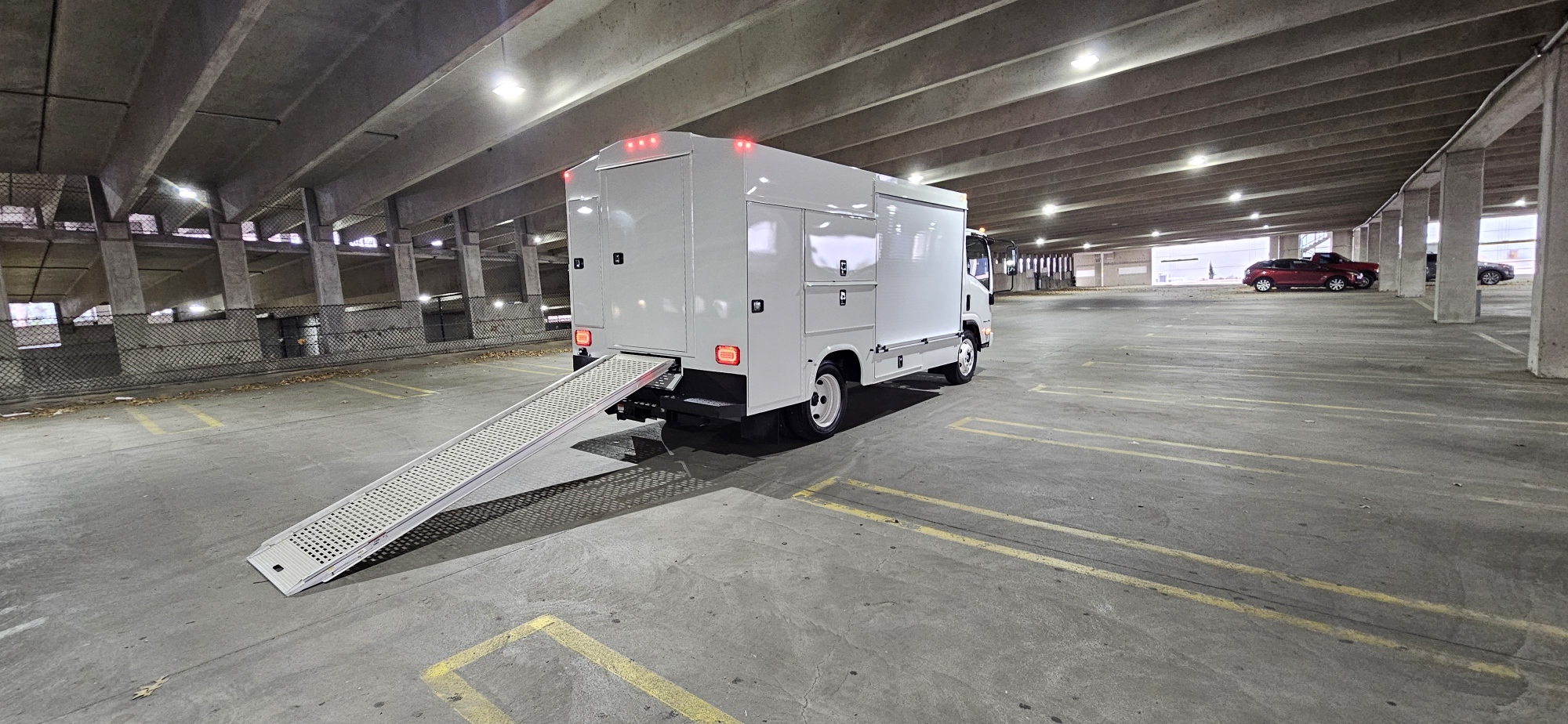

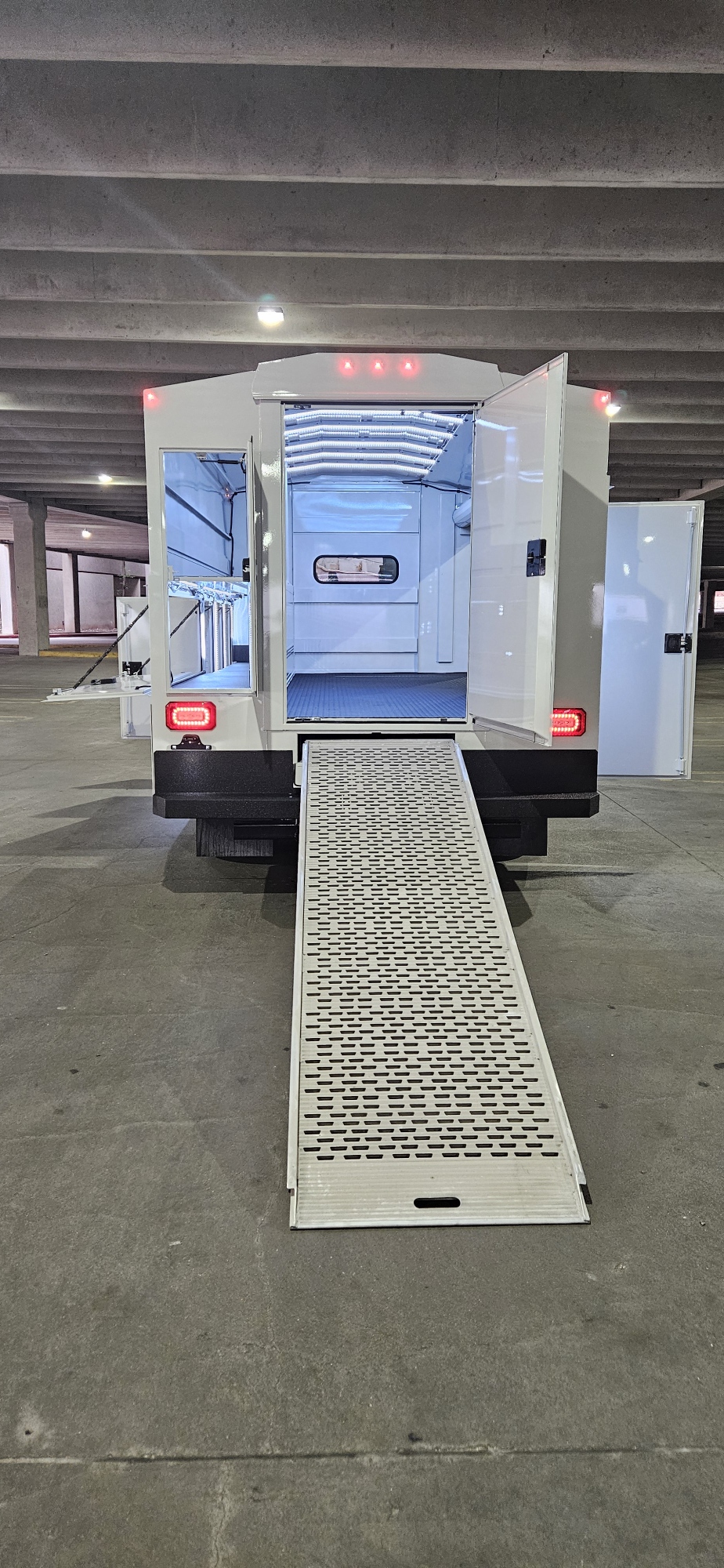

• Underbody Storage: Integrated rear underbody ramp storage built into the long-sill understructure, with a cargo floor designed to accept ramp keeper hooks.

‍

Safety & Driver Assistance

• Visual Tech: 7" Diagonal Color Touch Screen with integrated Apple CarPlay and Android Auto for seamless navigation and hands-free communication.
• Braking & Stability: 8-Speed Automatic Transmission paired with a 4.10 Rear Axle Ratio for consistent power delivery and reliable braking performance.
• Lighting: LED Stop/Turn/Tail light kit and 96" Galva-Grip step bumper for safe job site operation.
• Security: 2-Point latches on all service doors and a steel bulkhead with a window for visibility into the cargo hold.

‍

Interior & Convenience

• Infotainment: Chevrolet MyLink with Bluetooth connectivity and XM Radio capability.
• Cab Access: Low-step entry and wide-opening doors designed for crews that are frequently in and out of the vehicle.
• Comfort: Standard Air Conditioning and a spacious Regular Cab designed for three-passenger seating.

‍

Exterior & Mechanical

• Engine: 6.6L V8 Gas Engine.
• Transmission: 8-Speed Automatic.
• Chassis: 150" Wheelbase / 14,500 lb GVWR.
• Towing: Class V Receiver Hitch with a 2.5" tube, rated for up to 18,000 lbs (Trailer) and 3,600 lbs (Tongue). Includes 7-way flat trailer plug.
• Fuel Capacity: 38.6-Gallon Fuel Tank.
• Wheels: Dual Rear Wheel (DRW) configuration for improved payload stability.

‍

Body & Storage Specifications (Gorilla G1 Body)

• Dimensions: 169.25" Long x 96" Wide x 90" High.

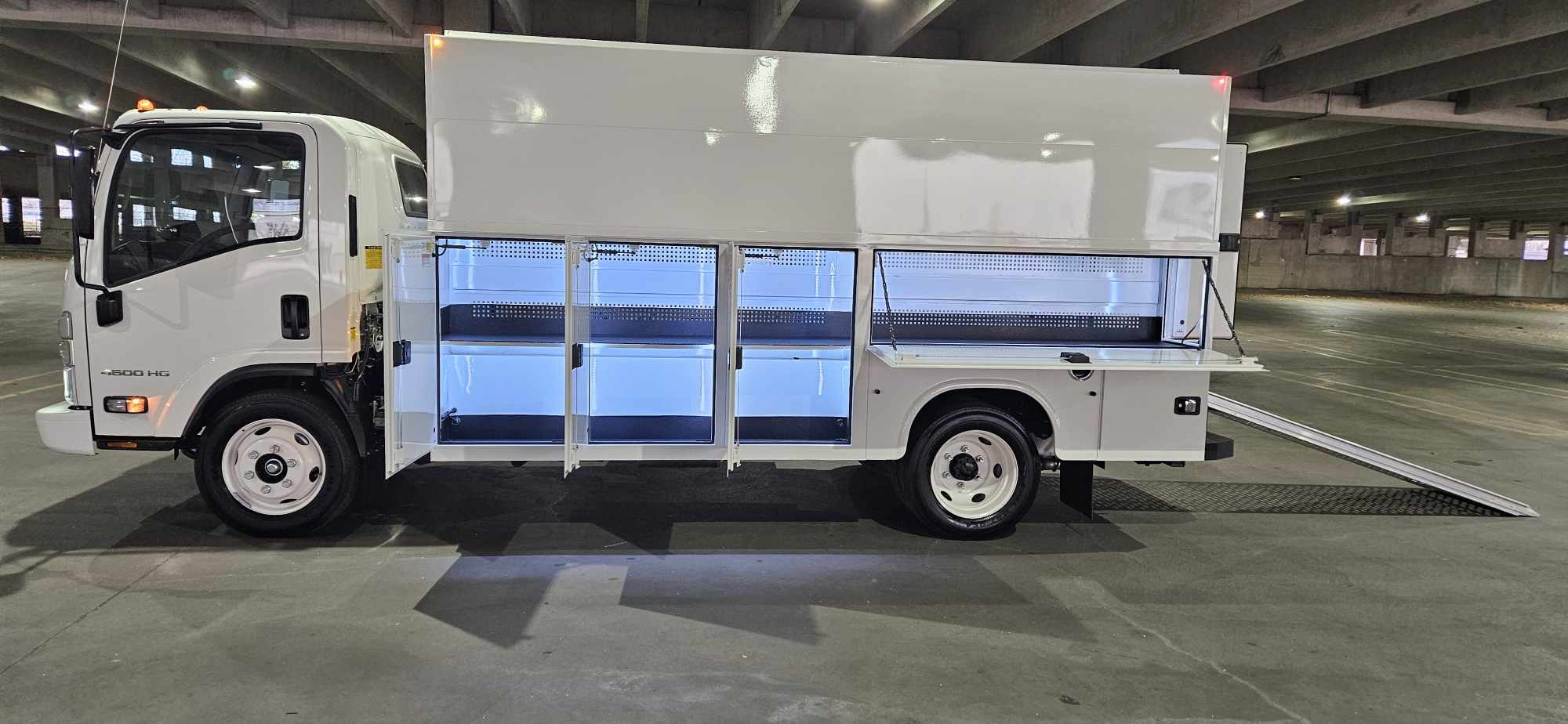

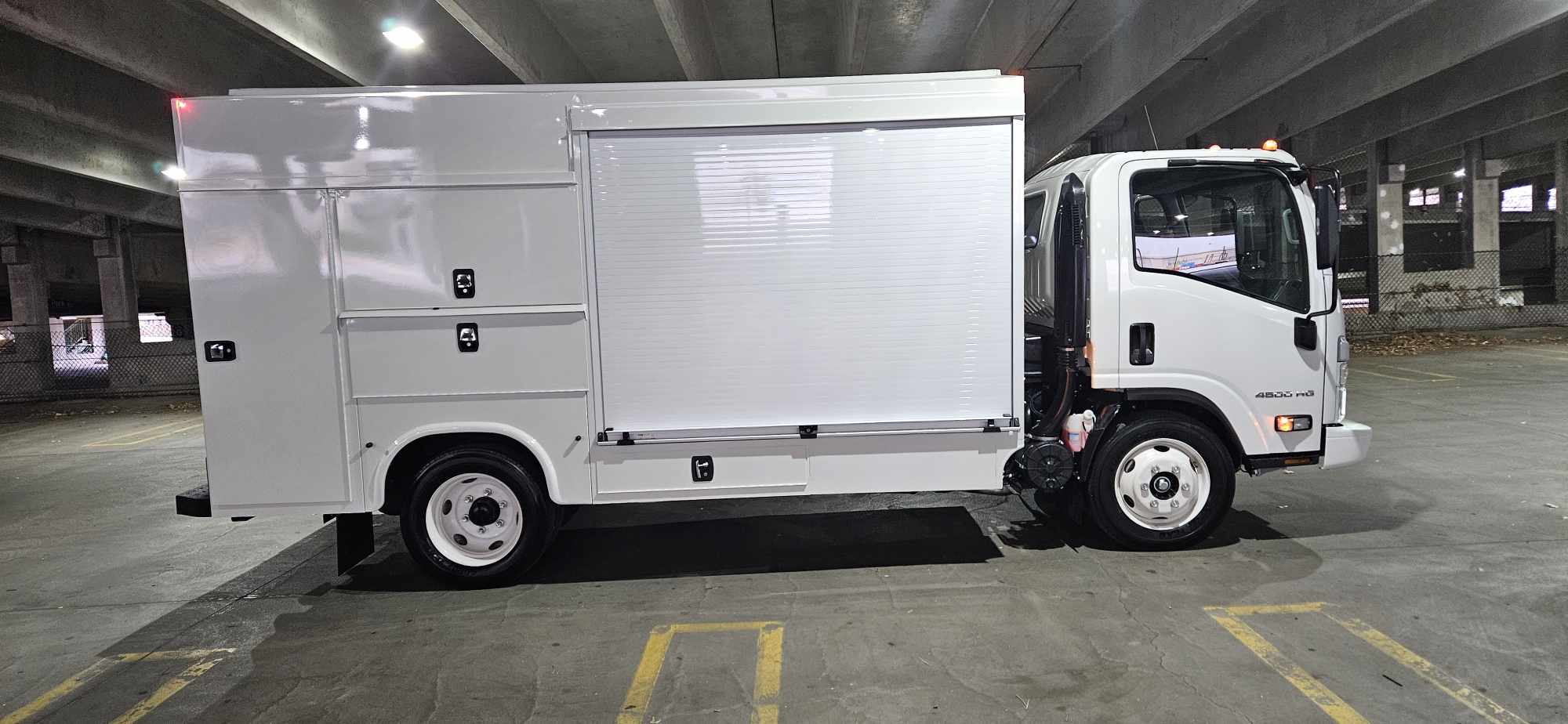

• Street Side: (3) Front vertical compartments and a horizontal compartment extended to the rear, all punched through to the cargo area for interior access.

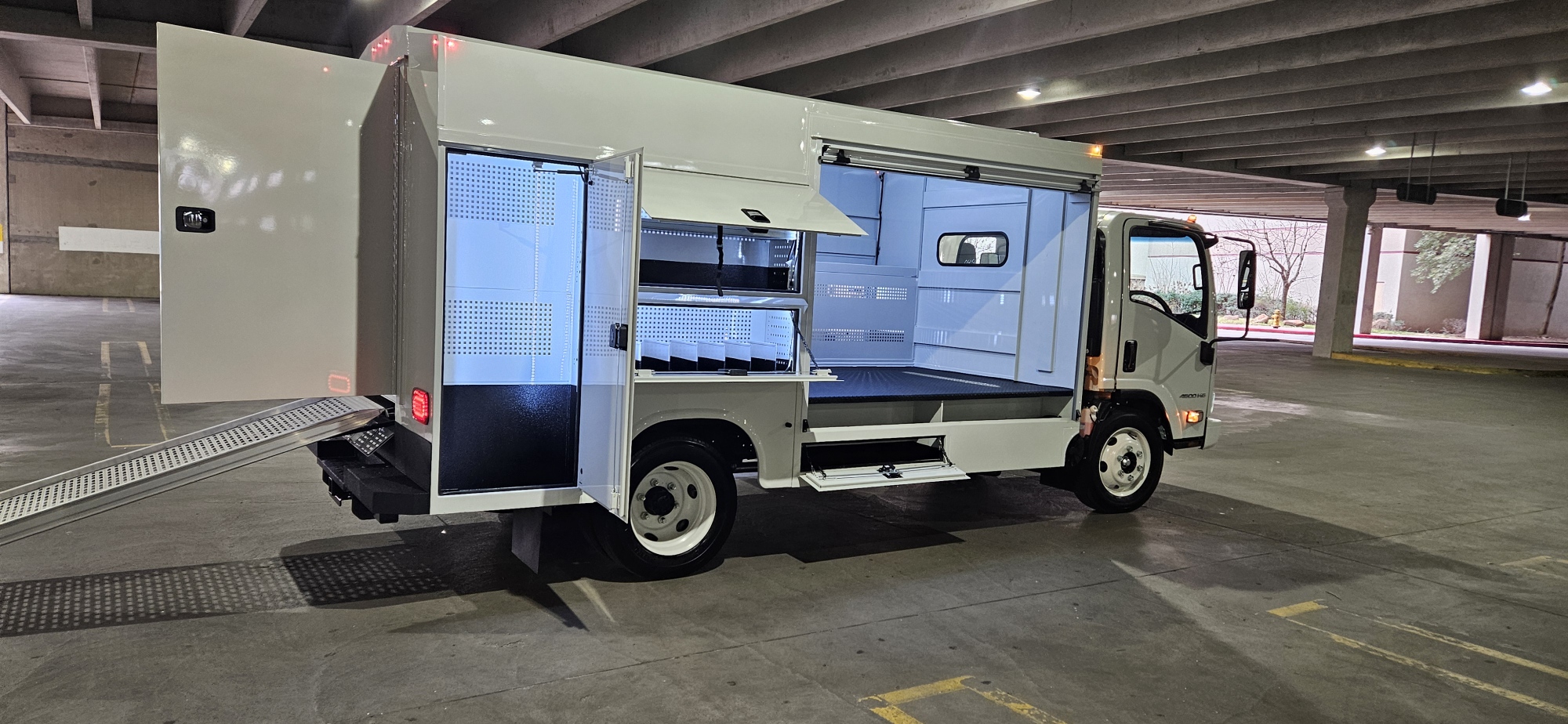

• Curbside: (7) Weld-in dividers in the horizontal compartment and a full-height rear compartment.
• Construction: Painted single-stage white FRP/Steel construction with a canopy roof and straight sides.
• Cargo Floor: 48" wide floor designed for heavy equipment transport.

‍

Note: This unit is pre-configured to accept several high-value options, including 5-bow ladder racks, drop-down ladder systems, and electronic locking packages.
